I recently realized that “MV Skid” is one of those terms that comes up constantly in BESS projects — but not everyone has the same picture of what is actually inside it.
So I made a simple visual explanation of the main components typically included.

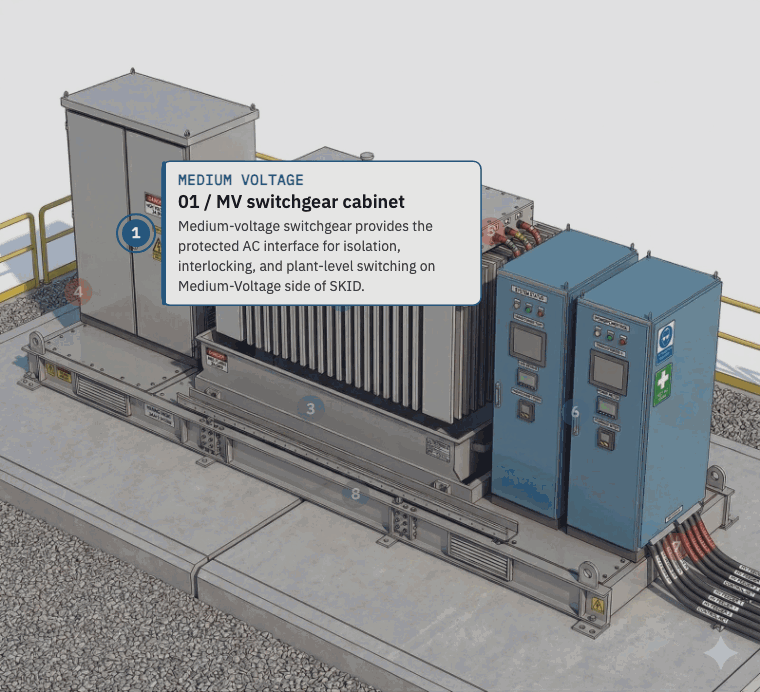

In a grid-scale BESS project, the MV Skid is the critical interface between the PCS and the medium-voltage network. It is not just a transformer on a frame — it is usually an integrated package that may include:
- MV transformer — steps voltage up from LV to MV level
- MV switchgear / RMU — provides switching, protection, and network connection
- Auxiliary transformer — supplies station and equipment power
- LV distribution and controls — powers and coordinates internal systems
- Cable interfaces — tie the skid into the site connection
The exact configuration depends on the project, voltage level, supplier design, and grid requirements. But the purpose is always similar: step up voltage, protect the system, simplify installation, and connect the BESS to the site MV network.
Details like this matter because many project misunderstandings start when we assume everyone uses the same terminology the same way.
